X-Jet Replacement Orifice

SKU OR7
by Xjet
$0.00 - $0.00
$0.00
$22.95
$22.95 - $22.95
$22.95

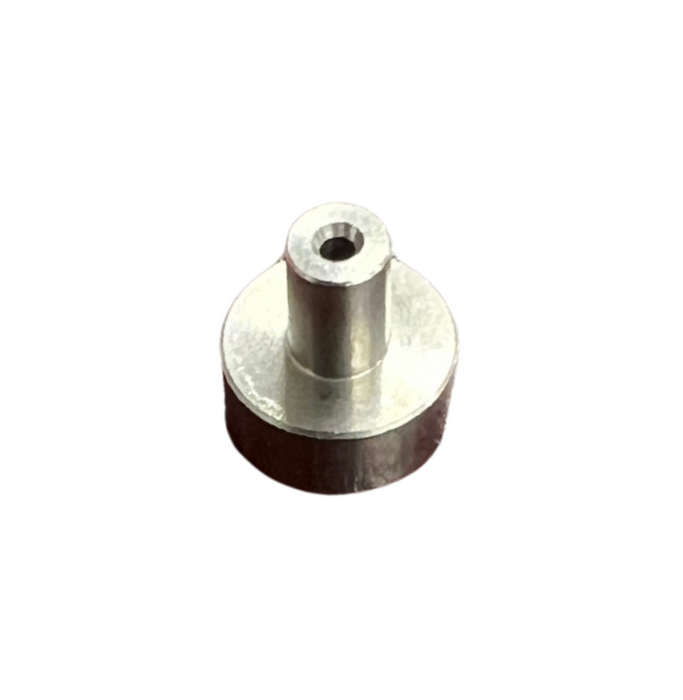

X-Jet® Orifice Replacement Part

Keep your X-Jet proportioning system performing at peak precision with the X-Jet Orifice Replacement Part. Whether you need to swap out a worn tip or change your mix ratio on the fly, this OEM-grade jet delivers accurate chemical draw and long-lasting reliability.

Key Features

  • Precision-Drilled Stainless Steel
    Machined to exact tolerances for consistent flow rates and mix ratios.

  • Color-Coded Anodized Body
    Matches X-Jet’s industry-standard tip colors for instant visual identification.

  • Quick-Swap Design
    Threaded insert fits directly into any X-Jet proportioner or downstream nozzle—no tools required.

  • Chemical-Resistant Seals
    Viton® O-rings ensure drip-free operation with acids, alkalis, and detergents.

  • Wide Size Range
    Available in ratios from 0.3 % up to 6 % (see specs below) to cover every application.

Benefits

  • Maintain Peak Accuracy: Replacing worn orifices restores original draw rates, preventing under- or over-concentration.

  • Minimize Downtime: On-site swap-out in seconds—no need to send kits back for service.

  • Extend Equipment Life: Fresh jets protect your pump and injectors by ensuring proper chemical flow.

  • Future-Proof Flexibility: Stock multiple sizes to adapt to new detergents or surfaces without changing hardware.

Technical Specifications

Specification Details
Material 316 Stainless Steel jet, anodized aluminum body
Seal Material Viton® O-rings
Thread Size ⅛″ NPT (male)
Ratio Range 0.3 %, 0.5 %, 1 %, 1.5 %, 2 %, 3 %, 4 %, 6 %
Flow Rate @ 2000 PSI See table below
Operating Temp. Range 32 °F – 190 °F (0 °C – 88 °C)
Chemical Compatibility All common soft-wash detergents
Mix % Orifice ID (in) GPM @ 2000 PSI
0.3 % 0.015″ 0.6
0.5 % 0.019″ 0.8
1 % 0.025″ 1.2
1.5 % 0.030″ 1.5
2 % 0.035″ 1.8
3 % 0.045″ 2.4
4 % 0.055″ 3.0
6 % 0.065″ 3.6

Compatibility

  • Fits all X-Jet Original, M5, and DS Twist proportioning nozzles

  • Use with any downstream injector or inline injector assembly

Order the X-Jet Orifice Replacement Part today to ensure every wash delivers the exact chemical concentration your job demands—and keep your system running like new.
